Cell Pin Battery Lithium Ion Phosphate Cell Battery Manufacturers

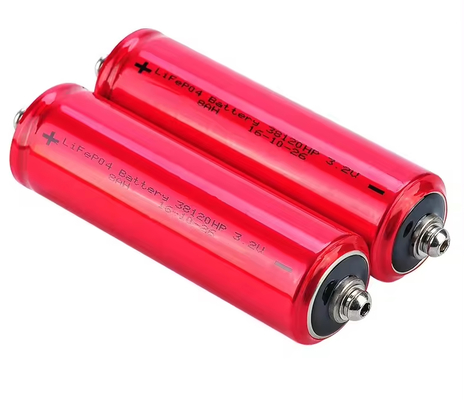

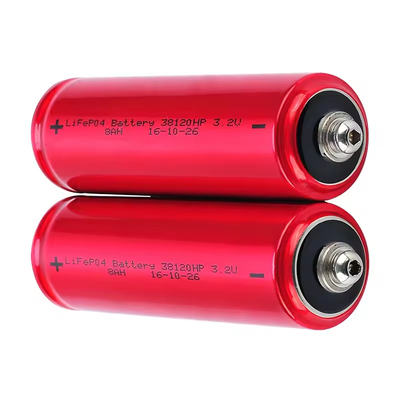

Large Image : Cell Pin Battery Lithium Ion Phosphate Cell Battery Manufacturers

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	38120HP

Contact Now

Detailed Product Description

Battery Size:	3.2V8ah	Battery Type:	Liquid
Cycle Life:	3000 Cycles	Cathode Materials:	LiFePO4
Application:	Power Tools, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies	Weight:	330g
Operating Temperature(℃):	-20~60°	Min Capacity:	7.5Ah @ 1C
Nominal Voltage:	3.2V	Charging Cut-off Voltage:	3.65 ±0.05 V
Discharge Cut-off Voltage:	2.5 ±0.05 V	Discharge Current:	5C
Type:	Li-Ion/lithium/lifepo4	Product Name:	3.2v 8ah Lifepo4 Battery Cell
Battery Type:	Lifepo4/lithium Battery	Cell Type:	3.2V 52ah
Voltage:	3.2(V)

Product Description

Nominal Capacity	8Ah @ 1C
Min Capacity	7.5Ah @ 1C
Nominal Voltage	3.2V
Charging cut-off voltage	3.65 ±0.05 V
Discharge cut-off voltage	2.5 ±0.05 V
Internal resistance	≤2.5mOhm

Item	Specification
Nominal Capacity	8Ah @ 1C
Min Capacity	7.5Ah @ 1C
Nominal Voltage	3.2V
Charging cut-off voltage	3.65 ±0.05 V
Discharge cut-off voltage	2.5 ±0.05 V
Charging Current	Standard: 3 C; Max: 10C at T≥10℃ Max: 3C at 10℃≥T≥0℃; Max: 0.1C at 0℃≥T≥-10℃
Discharging Current	Standard: 5C; Max Continuous: 15C; Instant(30S): 30C
Recommended temperature of the cell surface during charge and discharge	Charging: at 0～45℃ Discharging: at -20～60℃
The short-term maximum temperature of the cell surface during charging and discharging (in these cases charge and discharge will cause the cell cycle life to decay rapidly)	Charging: at 60℃ Discharging: at 75℃
Humidity range	0～90%RH (non-condensing)
Internal resistance	≤2.5mΩ(AC Internal resistance 1000HZ)
Cell Dimension	Max H: 136 mm Max Dia:38.5 mm
Weight	335±5g

Our 38120HP lifepo4 3.2V 8AH lithium battery widely used in Electric Vehicle, Electric Bicycle, Elctric forklift etc area which require high charge&discharge current C rate.

Main Features

1) Use lifepo4 as material, voltage 3.2V, capacity 8Ah.
2) High charge & discharge current rate.
3) Lifecycle more than 2000 times.
4) Use screw integration, convenient and easy.
5) Cylindrical lifepo4 3.2V lithium battery.

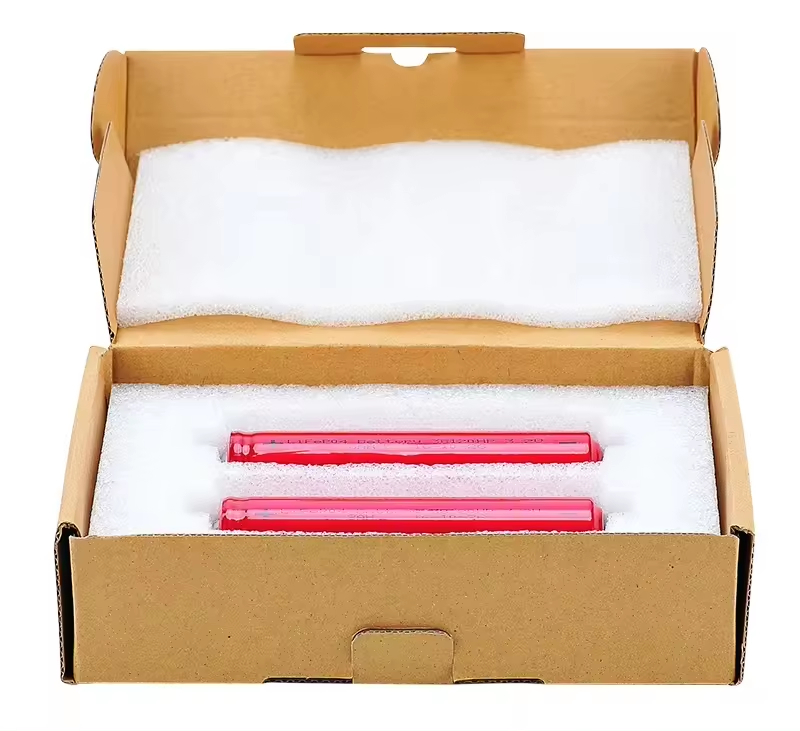

Packing & Delivery
