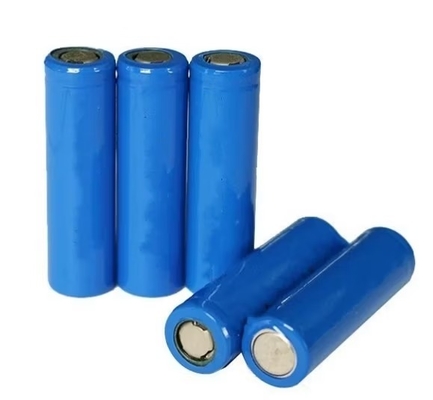

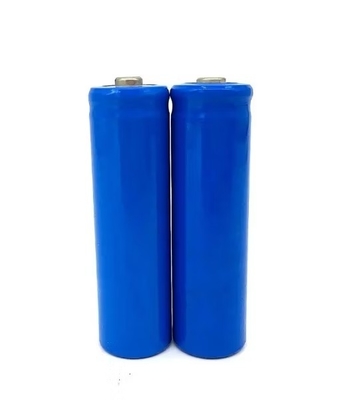

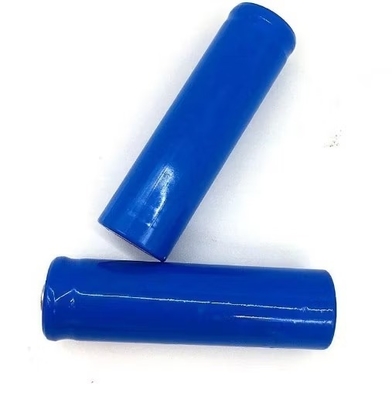

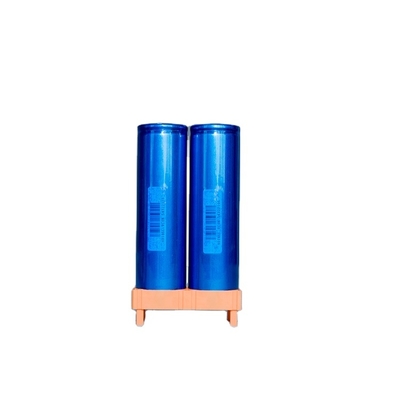

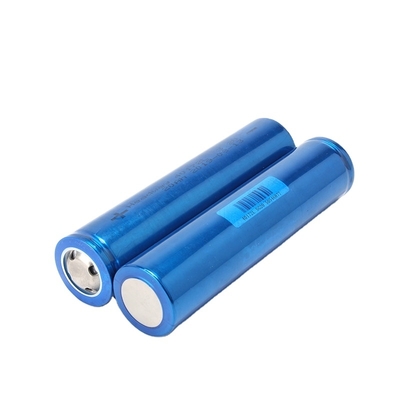

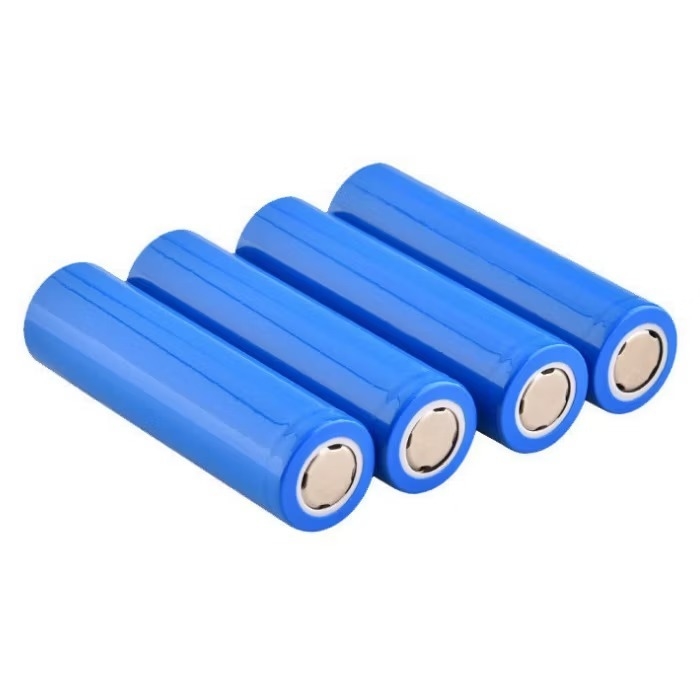

3.2v 20ah Lifepo4 Lithium Ion Battery Cell Cylindrical Product

Large Image : 3.2v 20ah Lifepo4 Lithium Ion Battery Cell Cylindrical Product

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	3.2V 20AH

Contact Now

Detailed Product Description

Battery Size:	40146L	Battery Type:	Liquid
Cycle Life:	3000 Cycles	Cathode Materials:	LiFePO4
Application:	Electric Vehicles	Weight:	445g
Operating Temperature(℃):	-20~60°	Nominal Voltage:	3.2V
Operating Voltage Range:	2.0-3.65V	Keywords:	Battery Cell
Product Name:	Lithium Battery Cell	Battery Type:	Lithium Iron Phosphate (LFP)
BMS:	Built-in BMS Protection	Size:	146*41mm
Usage:	Flashight	Protection:	Built-in BMS

Lithium Battery Parameter

Specification
Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	20Ah
Weight(Approximate)	500±5g
Recommended Discharge Current	20A
Max. Continuous Current	60A
Max. 3 sec. Pulse	200A
Cut-off Voltage	2.0V
Charge Voltage	3.65V
Recommended Charge Current	10A
Max. Charge current	20A
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
0.5C/1C cycle life	≥2000 Times
OEM and ODM service	Supply
Quality	Grade A
