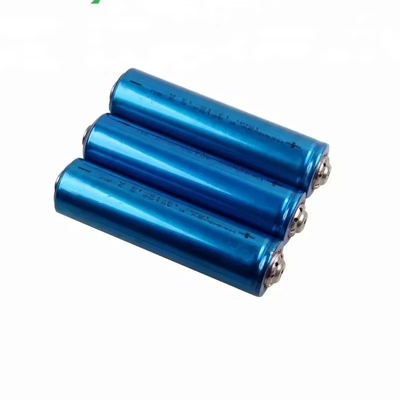

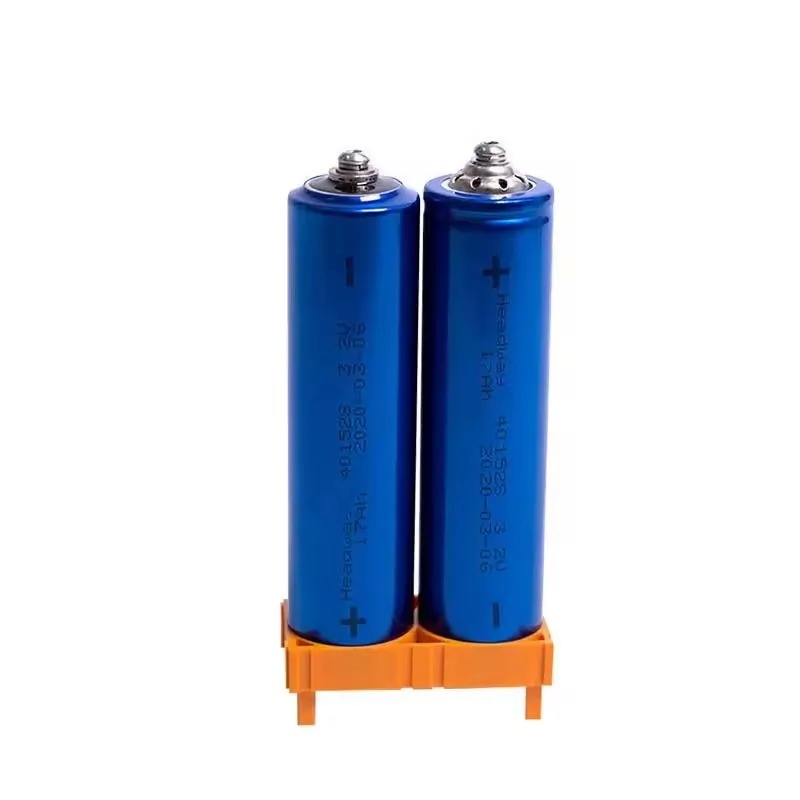

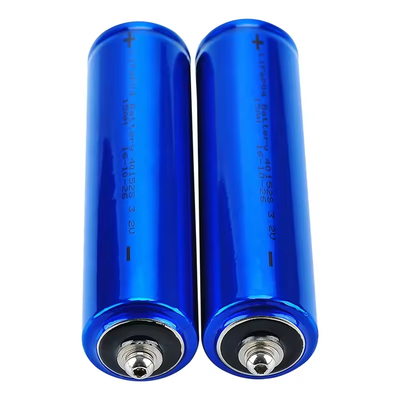

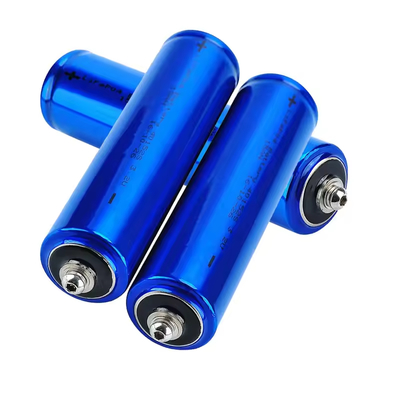

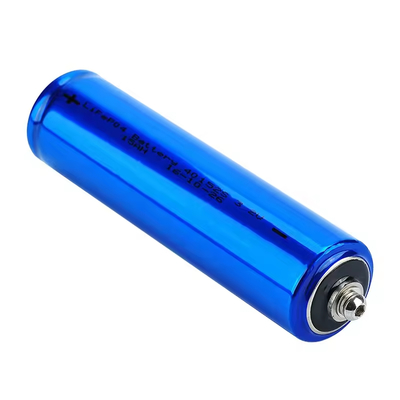

Most Reliable Headway Lithium 3.2v 100ah Lifepo4 Battery Cells

Large Image : Most Reliable Headway Lithium 3.2v 100ah Lifepo4 Battery Cells

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	3.2V 17Ah

Contact Now

Detailed Product Description

Battery Size:	17Ah 3.2v	Battery Type:	Semi-solid State
Cycle Life:	3000 Cycles	Cathode Materials:	LiFePO4
Application:	Electric Bicycles/Scooters, Electric Vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts	Weight:	460g
Operating Temperature(℃):	-20~60°	Size:	40±1mm*H152±1mm
Cycle Life:	More Than 3000 Times	Keywords:	Battery Cell
Apllication:	Solar Energy System Battery Cell	Brand:	Headway
OEM/ODM:	Accepatable	Capacity:	17Ah-100Ah
Norminal Voltage:	3.2V	Main Application:	Large Power Battery
Discharge Current:	0.5C

Lithium Battery Parameter

Specification
Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	17Ah
Weight(Approximate)	500±5g
Recommended Discharge Current	20A
Max. Continuous Current	60A
Max. 3 sec. Pulse	200A
Cut-off Voltage	2.0V
Charge Voltage	3.65V
Recommended Charge Current	10A
Max. Charge current	20A
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
0.5C/1C cycle life	≥2000 Times
OEM and ODM service	Supply
Quality	Grade A
