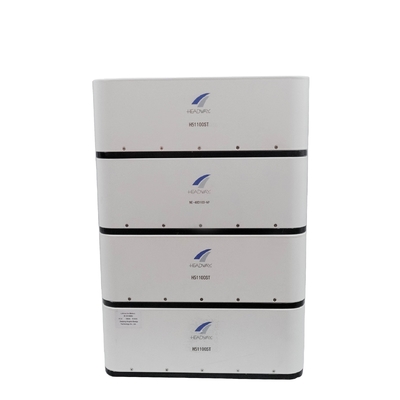

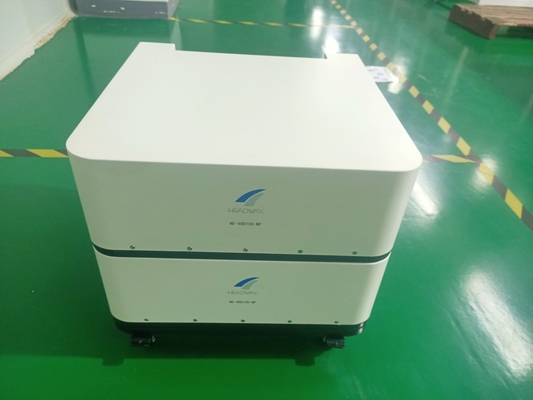

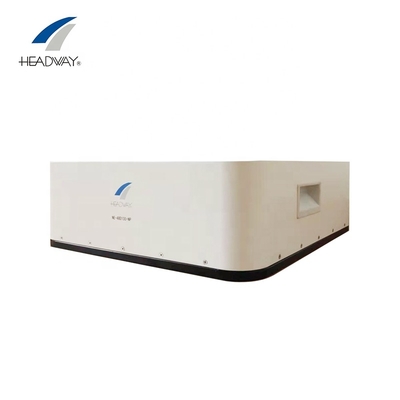

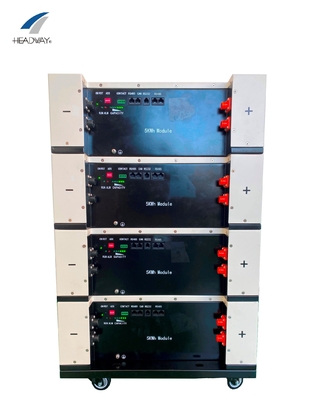

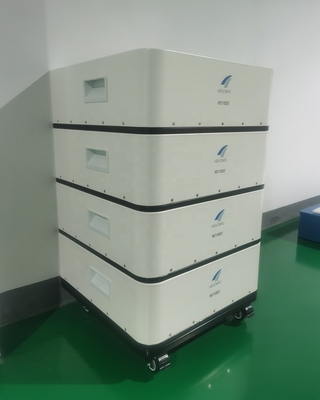

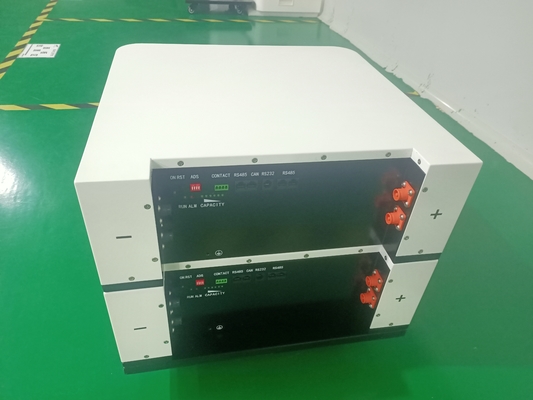

51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack

51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack

51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack

Large Image :  51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Headway
Model Number: H51100ST
Detailed Product Description
Max Load Quantity(cells): 4 Cycle Life: 3000 Cycles
Dimension (L*W*H): W460 * D460 * H174 Mm Application: Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Home Energy Storage, Home Energy System, Solar System, Energy Storage
Weight: 45KG Operating Temperature(℃): -10~60
Cathode Materials: LiFePO4 Nominal Voltage: 51.2V
Nominal Capacity (0.5C, 25℃): 100Ah Battery Type: Stack Type Lithium Battery Pack
Usage: Back-up Power OEM/ODM: Accepatable
Size: W460 * D460 * H174 Mm Charge Current (Recommed): 0.2C (20A)
Discharge Current (Max Continuous): 1C (100A) Warranty: 5 Years

Lithium Battery Parameter
Item
H51100ST
Rated Voltage (V)
51.2V
Rated Capacity (Ah)
100AH
Working Voltage Range (V)
45-58.4V
Charge current (Recommed)
0.2C (20A)
Discharge Current (Max Continuous)
1C (100A)
Life Cycle Time
>5000 times @70%DOD
Design Life
>10 years @25℃
Size (mm)
W460 * D460 * H174 mm
Weight (kg)
45kg
Charge temperature
0~45℃
Discharge temperature
-10~55℃
Status Indicators
SOC/ALM/RUN
Communication Ports
RS232*1, RS485*2, CAN*1
Reset key
Available
LCD Screen
Yes
Parallel in Maximum
4 sets
Product Description
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 0
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 2
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 4
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 6
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 8
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 10
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 12
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 14
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 16
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 18
Packing & Delivery
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 20
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 22
Equipment
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 24
Certifications
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 26
Company Profile
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 28
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 30
51.2V100Ah 5kWh Stack Type Lithium-ion Battery Headway Home Energy Storage Lithium-ion Battery Pack 32


Zhejiang Xinghai Energy Technology Co., LTD. (referred to as "Xinghai Energy") is a subsidiary of Headway Group, which is involved in the field of lithium-ion battery, optical cable and data cable etc. With a total asset of 1 billion Yuan and 1,500 employees (192 technical personnel included), Headway Group has currently become an international enterprise with an annual output over 1 billion Yuan. Domestic marketing & sales are mainly handled by Headway Group’s North and South Business Divisions’ branches / offices in Beijing, Shanghai, Chengdu, Hangzhou, Shenzhen, Guangzhou, Shijiazhuang, Zhengzhou, Xi’an, Jinan, Qingdao, Shenyang and other places; as to the international business which is led by Xinghai Energy’s Sales Department and Headway Group branches in Beijing, Shenzhen and Germany.

Located in Changxing state-level E&T development zone in Zhejiang Province, Xinghai Energy has been focusing on the R&D, production, sales and service of lithium-ion batteries since its establishment in 2003. Relying on a number of technical patents of its own, Xinghai Energy has achieved the mass production of battery cells and packs, and taken which as core, has also developed into a comprehensive integrated energy solution provider.

Nowadays, Xinghai Energy has an annual production capacity of 20 billion watt hours by its main products of large capacity cylindrical LiFePO4 cells and packs. Energy storage batteries are mainly used in communication, industrial, commercial and domestic fields or scenarios. The main applications of small power battery are AGV, low speed EVs (two-wheeled vehicles, tricycles, golf carts, etc.), and electric machinery such as forklifts, etc.

Thanks to the Headway ® lithium batteries developed independently, Xinghai Energy has successfully entered the international market for many years, and products are mainly sold to Europe, America and Southeast Asian countries with high popularity and reputation wildly. Xinghai Energy is fully qualified and has passed ISO9001, ISO14001, ISO45001, TS16949, CE, UL, TLC, CB, ROHS and other certifications. In 2010, Xinghai Energy was recognized as a national high-tech enterprise with a provincial high-tech R&D center.

Xinghai Energy is skilled in the R&D and production of high-rate, medium-rate and high-capacity cylindrical steel shell cells. It has become a major supplier of lithium batteries for many multinational telecom operators, a core supplier of lithium batteries for global hydrogen energy leaders and a strategic partner of high-end semiconductor industry. By the end of 2021, we have supplied more than 100,000 pieces of 48V100Ah battery packs to telecom operators, more than 10 million high-power 38120HP cells to hydrogen energy leaders and battery packs integrated with 40152S medium power cell in batches to semiconductor enterprises.

Xinghai Energy will treat create value for customers as its business philosophy, and keep providing continuously first-class products and solutions for customers as its eternal pursuit.
