Grade a 3.2V Lithium Ion Lifepo4 Battery Cell for Electric Power System

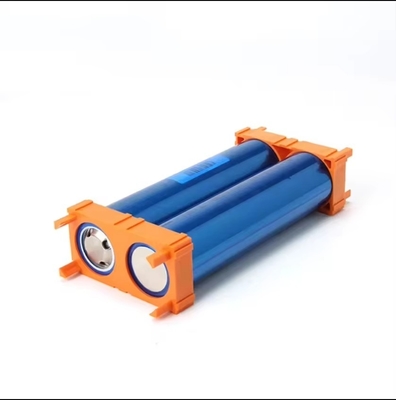

Large Image : Grade a 3.2V Lithium Ion Lifepo4 Battery Cell for Electric Power System

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	3.2V 25AH

Contact Now

Detailed Product Description

Battery Size:	40175L	Battery Type:	Liquid
Cycle Life:	3000 Cycles	Cathode Materials:	LiFePO4
Application:	Electric Power Systems	Weight:	520g, 520G
Operating Temperature(℃):	-20~60°	Nominal Voltage:	3.2V
Operating Voltage Range:	2.0-3.65V	Nominal Capacity:	25Ah
Size:	175*41mm	Apllication:	Home Appliances. Consumer Electronics
Discharge Rate:	Max 6C	Product Name:	Rechargeable Lifepo4 Battery Cell
OEM/ODM:	Welcome! Available!	Shipping:	By Sea/air/land

Lithium Battery Parameter

Specification
Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	25Ah
Weight(Approximate)	520±5g
Recommended Discharge Current	20A
Max. Continuous Current	60A
Max. 3 sec. Pulse	200A
Cut-off Voltage	2.0V
Charge Voltage	3.65V
Recommended Charge Current	10A
Max. Charge current	20A
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
0.5C/1C cycle life	≥3000 Times
OEM and ODM service	Supply
Quality	Grade A
