Headway 40152 LiFePO4 Battery 3.2V 15Ah Solar Energy Storage Lithium Ion Battery Consumer Electronics Cell Lithium Ion Battery

Large Image : Headway 40152 LiFePO4 Battery 3.2V 15Ah Solar Energy Storage Lithium Ion Battery Consumer Electronics Cell Lithium Ion Battery

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	HW40152S

Contact Now

Detailed Product Description

Battery Size:	40152, 40152S	Application:	Power Tools, Toys, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Forklifts, Uninterruptible Power Supplies, Solar Energy Storage Systems, Electric Power Systems, Electric Wheelchairs, Electric Vehicles, Electric Bicycles/Sc
Weight:	475g, 475±5g	Recommended Discharge Current:	17A
Warranty:	12months	Max. Continuous Current:	45A
Max. Charge Current:	30A	Recommended Charge Current:	17A
OEM/ODM:	Yes(Accepted)	Color:	As Pictures
Size:	3.2V 17Ah	Anode Material:	LFP
The Discharge Rate:	15C	Electric Energy:	54.4 Wh

Product Description

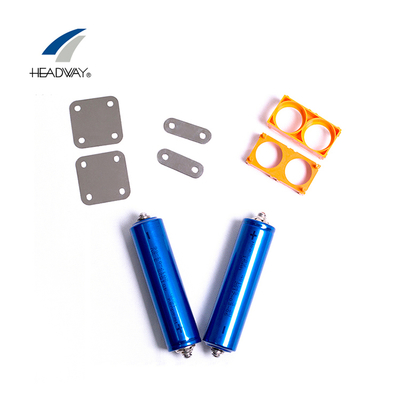

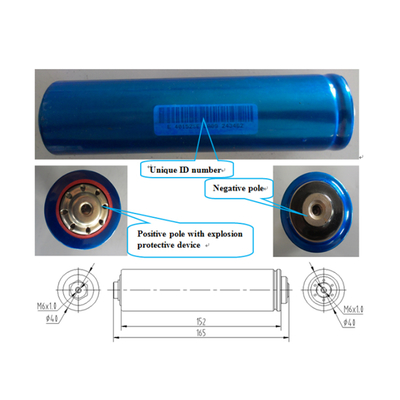

1.Our 40152S is with screws.It is convenient to connect when you are building the battery pack.
2,It is with high discharge rate and low self discharge.
3,40152S cells are widely used in electric bicycle,e-motorcycle,and e-cars.We had been the battery supplier for many manufacturers all over the world.
4,You can buy our single cells,meanwhile we can build the battery for you according to your voltage and capacity.And provide the BMS and box to youon the basis of your technical specification

Specification

Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	15Ah
Weight(Approximate)	475±5g
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
1C/1C cycle life	≥2000 Times
1C/3C cycle life	≥1500 Times
Max. Continuous Current	45A
Max. 30 sec. Pulse	150A
Cut-off Voltage	2.0V

Advantage

1. Steady performance
2. Super high cycle life
3. Higher energy density
4. Safety, no explosion
5. Lighter and smaller
6. No memory effect
7. Wider operation temperature
8. Higher peak power
