Original Manufacturer Headway Lifepo4 Battery Battery Cells 40152s 3.2v 17Ah max discharge 15C

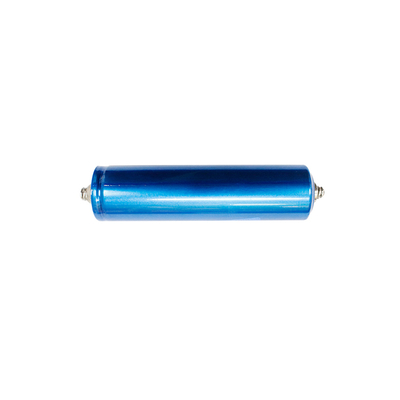

Large Image : Original Manufacturer Headway Lifepo4 Battery Battery Cells 40152s 3.2v 17Ah max discharge 15C

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Headway
Model Number:	HW40152S

Contact Now

Detailed Product Description

Battery Size:	3.2V 17Ah, 40152S	Battery Type:	Liquid, Lifepo4 Battery
Cycle Life:	3000 Cycles 100%	Cathode Materials:	LiFePO4
Application:	Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies	Weight:	475±5g
Operating Temperature(℃):	-20 - 50	Brand:	Headway
Recommended Discharge Current:	15A	Warranty:	12months
Max. Continuous Current:	45A	Max. Charge Current:	30A
Recommended Charge Current:	15A	OEM/ODM:	Yes(Accepted)
Color:	As Pictures

Product Description

1.Our 40152S is with screws.It is convenient to connect when you are building the battery pack.
2,It is with high discharge rate and low self discharge.
3,40152S cells are widely used in electric bicycle,e-motorcycle,and e-cars.We had been the battery supplier for many manufacturers all over the world.
4,You can buy our single cells,meanwhile we can build the battery for you according to your voltage and capacity.And provide the BMS and box to youon the basis of your technical specification

Specification

Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	15Ah
Weight(Approximate)	475±5g
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
1C/1C cycle life	≥2000 Times
1C/3C cycle life	≥1500 Times
Max. Continuous Current	45A
Max. 30 sec. Pulse	150A
Cut-off Voltage	2.0V

Advantage

1. Steady performance
2. Super high cycle life
3. Higher energy density
4. Safety, no explosion
5. Lighter and smaller
6. No memory effect
7. Wider operation temperature
8. Higher peak power
